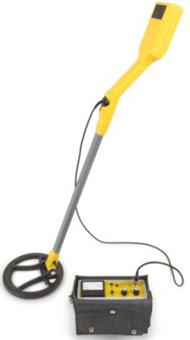

Elcometer P520 Metal Detector

elcometer p520 metal detector

Product Description:

The Elcometer P520 Metal Detector is very high powered for greater depth detection. Originally designed to locate water mains, pipes and cables the Elcometer P520 is the perfect choice for location work in cluttered areas and at depths where other metal detectors simply do not work.

Technical Specification:

Dimensions
Metric Imperial
Main Unit
23.3 x 18 x 10 cm
9.2 x 7 x 4”
Search Head Diameter
22cm
8.7”
Weight
850g
1.87lb
Power Supply
Internal Rechargeable Battery (supplied with charger unit)



Approximate Detection Ranges
Typical Object Type Metric Imperial
Cast Iron Main - 80mm (3")
100cm
39"
Cast Iron Main - 100mm (4")
118cm
46"
Valve Only - 100mm (4")
83cm
33"
Cast Iron Main - 150mm (6") 127cm 50"
Washout / Fire Hydrant Cover 121cm 47"
Plate - 140mm (5½") Diameter 70cm 27"



Model Description Part Number
UK 240V EUR 220V USA 110V
Elcometer P520 Elcometer P520 Metal Detector with charger unit W520162H
W520162I
W520162J
Accessories Replacement Mains Charger TW999060C TW999060F TW999060G
Replacement 200mm (8") Search Coil for the Elcometer P520 TW520197B


elcometer p520 metal detector Download Full Catalog
