Product Description:

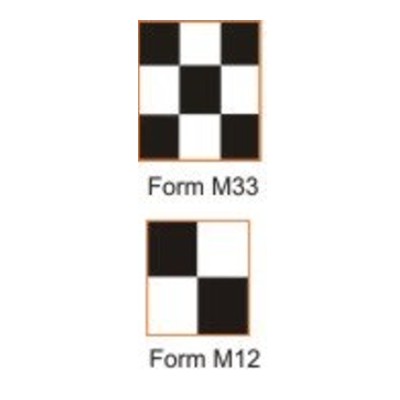

These are pressure sensitive labels with a hiding power test pattern and a sealed, solvent-resistant surface. They are used primarily with metal panels on which the panel alone provides no visual clue as to the thickness of the applied paint film.
When placed on such a surface the Monitor presents a contrasting feature by which to observe how well the coating hides the surface, thereby facilitating film thickness control.
It adheres firmly whether air-dried or baked, to present a permanent visual record of film opacity.
Available in Black/White, Black/Grey and also Red/Grey (not shown).
Technical Specification:
| Part Number |
Description |
Chart Dimensions |
Box
Weight |
Quantity
per Box |
Boxes
per Case |
| Box |
Case |
mm |
inches |
| K0004695M059 |
K0004695M259 |
Leneta Spray Monitor M33 |
51 x 51 |
2x2 |
0.91kg (2lb) |
500
|
4 |
| K0004695M058 |
K0004695M258 |
Leneta Spray Monitor M33-BG |
51 x 51 |
2x2 |
0.91kg (2lb)
|
500 |
4 |
| K0004695M060 |
K0004695M260 |
Leneta Spray Monitor M33-RG |
51 x 51 |
2x2 |
0.91kg (2lb) |
500 |
4 |
| K0004695M056 |
K0004695M256 |
Leneta Spray Monitor M12 |
25 x 25 |
1x1 |
0.91kg (2lb) |
2000 |
4 |
| K0004695M055 |
K0004695M255 |
Leneta Spray Monitor M12-BG |
25 x 25 |
1x1 |
0.91kg (2lb) |
2000 |
4 |
| K0004695M057 |
K0004695M257 |
Leneta Spray Monitor M12-RG |
25 x 25 |
1x1 |
0.91kg (2lb) |
2000 |
4 |
| K0004695M061 |
K0004695M261 |
Leneta Spray Monitor M71 |
51 x 279 |
2x11 |
2.72kg (6lb) |
500
|
4 |
| K0004695M062 |
K0004695M262 |
Leneta Spray Monitor M71-BG |
51 x 279 |
2x11 |
2.72kg (6lb) |
500
|
4 |
| K0004695M063 |
K0004695M263 |
Leneta Spray Monitor M72 |
51 x 279 |
2x11 |
2.72kg (6lb) |
500
|
4 |
| K0004695M079 |
K0004695M279 |
Leneta Spray Monitor M72-BG |
51 x 279 |
2x11 |
2.72kg (6lb) |
500
|
4 |
