Product Description :
The Elcometer 2300 range of rotational viscometers measures the viscosity of liquids in accordance with several standards.
Using a rotational viscometer, the properties of liquids and their resistance to shear or flow can be accurately measured.
Available in four models variants, with a large selection of speeds, spindles and accessories, this range ensures determining the viscosity of liquids has never been easier
- Accurate, easy to use and reliable:
Easy to use control panel
- Clear, backlit LCD display:
Shows viscosity reading in cP or mPa, spindle rotation speed, % torque, sample temperature, auto range, shear rate and shear stress.
- Quick connect spindles:
Rapid and simple attachment to any of the Elcometer 2300 rotational viscometers.
- Selectable speeds:
Provides a wide range of viscosity and shear rate measurements.
- Wide range of spindles and accessories:
Versatile viscometer can test any liquid.
- RS323 interface:
Allows for data download and complete control of spindle speed via PC on RV2 models.
- Temperature probe:
Directly measure sample temperature
- ViscosityMaster™ Software:
Powerful yet easy to use software specifically designed to maximise the versatillity of the viscometer. Stores data along side associated photographs, test notes and any other information.
Technical Specification :
| Model |
Elcometer 2300
RV1-L |
Elcometer 2300
RV1-R |
Elcometer 2300
RV2-L |
Elcometer 2300
RV2-R |
| Part Number |
K2300M101 |
K2300M102 |
K2300M201 |
K2300M202 |
| Manual Control |
• |
• |
|
|
| Manual & PC Controlled |
|
|
• |
• |
| Low to Medium Viscosity |
• |
|
• |
|
| Medium to High Viscosity |
|
• |
|
|
| Backlit LCD |
• |
• |
• |
• |
| Readings in cP & mPas |
• |
• |
• |
• |
| Sample Temperature Measurement |
• |
• |
• |
• |
| Measuring Range (mPas) |
3-2,000,000 |
20-13,000,000 |
3-2,000,000 |
20-13,000,000 |
| Accuracy (measure) of Full Scale |
±1% |
±1% |
±1% |
±1% |
| Maximum Altitude above Sea Level |
2000m(6562ft) |
2000m(6562ft) |
2000m(6562ft) |
2000m(6562ft) |
| Surge Class II (Domestic / Light industry) |
• |
• |
• |
• |
| Contamination Level 2 |
• |
• |
• |
• |
| Speeds (rpm) |
0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100, 200 |
| Accuracy (speed) |
|
| PT100 Thermometer Range |
-15°C to +180°C (5°F to 356°F) |
| PT100 Thermometer Resolution |
0.1°C (0.18°F) |
| PT100 Thermometer Accuracy |
±0.1°C (0.18°F) |
| Power Consumption |
23W |
| Dimensions (of carry case) |
495 x 420 x 200mm (19.5 x 16.5 x 8”) |
| Weight (including carry case) |
9kg (20lb) |
| Certificate available |
Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. |
| Packing List |
Elcometer 2300 RV1-L Spindles L1 to L4, RS232 connection cable, ViscosityMaster™ software for data transfer from viscometer to PC only
Elcometer 2300 RV1-R Spindles R2 to R7, RS232 connection cable, ViscosityMaster™ software for data transfer from viscometer to PC only
Elcometer 2300 RV2-L Spindles L1 to L4, RS232 connection cable, ViscosityMaster™ software for bi-lateral data transfer between viscometer & PC
Elcometer 2300 RV2-R Spindles R2 to R7, RS232 connection cable, ViscosityMaster™ software for bi-lateral data transfer between viscometer & PC |
Can be used in accordance with:
AS/NZS 1580.214.5, ASTM D 1084-B, ASTM D 2196, BS 3900-A7-2, ISO 2555, ISO 2884-2
Standards in grey have been superseded but are still recognised in some industries.
Accessories:
 |
Spindles
Each Elcometer 2300 is supplied with a set of stainless steel spindles as standard, suitable for both Newtonian & non-Newtonian fluids.
Elcometer 2300 RV-L supplied with spindles L1-L4 for low to medium viscosity testing.
Elcomester 2300 RV-R supplied with spindles R2-R7 for medium to high viscosity testing.
A large R1 spindle (shown left) can be supplied upon request.
| KT00230019698 |
Extra spindle set, standard type L1-L4 |
| KT00230019699 |
Extra spindle set, standard type R2-R7 |
| KT00230019700 |
R1 spindle (supplied on request) |
|
 |

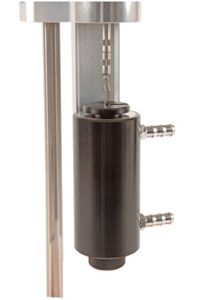

Small Sample Adaptor
The small sample adaptor consists of a cylindrical sample chamber which can be used in conjunction with spindles TL & TR. To accurately obtain viscosity measurements, shear rate and shear stress of sample volumes between 8 - 13ml (0.27-0.44fl.oz). The TL spindles for low to medium viscosity samples and TR spindles for medium to high viscosity samples.
| KT00230019702 |
Adaptor kit for small volume samples |
| KT00230019784 |
Adaptor kit for small volume samples & integrated temperature sensor (requires a small volume spindle set) |
| KT00230019703 |
Small volume spindle set (TL5, TL6 and TL7) |
| KT00230019704 |
Small volume spindle set (TR8, TR9 and TR11) |
|
 |
Low Viscosity Adaptor
The low viscosity adaptor consists of a cylindrical sample chamber and is supplied
complete with spindle and are used to accurately obtain viscosity measurements, shear rate and shear stress of low viscosity materials from 1cP (mPa). The stainless steel chamber can hold a sample volume from 16-18ml (0.54 - 0.61fl.oz) and keep it at a constant specified temperature between 0°C and 100°C (32°F and 212°F).
| KT00230019710 |
Low visocsity adaptor kit with spindle |
|
 |
High Temperature Adaptor
The high temperature adaptor allows precise measurement of viscosity at high temperatures. It can accurately obtain viscosity measurements, shear rate and shear stress from 1cP(mPa) up to temperatures of 200°C (392°F). The stainless steel chamber can hold a sample volume from 16-18ml (0.54-0.61fl.oz). The high temperature adaptor is ideal for use with materials such as hot resins, bitumens and oils.
Each adaptor is supplied complete with a spindle.
| KT00230019711 |
High temperature adaptor kit with spindle |
|
 |
Helical Movement Adaptor
Some materials, such as creams, pastes and gels, do not flow easily, so standard spindles and testing methods cannot be used as they create a ‘hole’ in the material, generating invalid results.
The measuring head, when attached to the Elcometer 2300, moves smoothly up and down and automatically stays within pre-programmed limits.
This allows the needle style spindle to cut into the material, making a helical path through the sample, making the measurement of viscosity. The kit is supplied with the motor and 6 T-shaped spindles: PA, PB, PC, PD, PE, PF.
| KT00230019705 |
Helical movement adaptor kit (240V UK) |
| KT00230019706 |
Helical movement adaptor kit (220V EUR) |
| KT00230019707 |
Helical movement adaptor kit (110V US) |
|
 |
Rotational Viscosity Standard Calibration Oils
Silicone standard oils are used to check viscosity measurements. The values are given for 6 different temperatures between 20°C and 27°C (68°F and 80°F).
The oils listed below are specifically manufactured for use with Elcometer Rotational viscometers and values quoted are nominal at 25°C (77°F).
| KT009999N001 |
Standard calibration oil (60ml/2floz) - 300cP |
| KT009999N002 |
Standard calibration oil (60ml/2floz) - 700cP |
| KT009999N003 |
Standard calibration oil (60ml/2floz) - 1000cP |
| KT009999N004 |
Standard calibration oil (60ml/2floz) - 25000cP |
| KT009999N005 |
Standard calibration oil (60ml/2floz) - 40000cP |
| KT009999N101 |
Standard calibration oil (500ml/1pint) - 300cP |
| KT009999N102 |
Standard calibration oil (500ml/1pint) - 700cP |
| KT009999N103 |
Standard calibration oil (500ml/1pint) - 1000cP |
| KT009999N104 |
Standard calibration oil (500ml/1pint) - 25000cP |
| KT009999N105 |
Standard calibration oil (500ml/1pint) - 40000cP |
|
