Product Description:

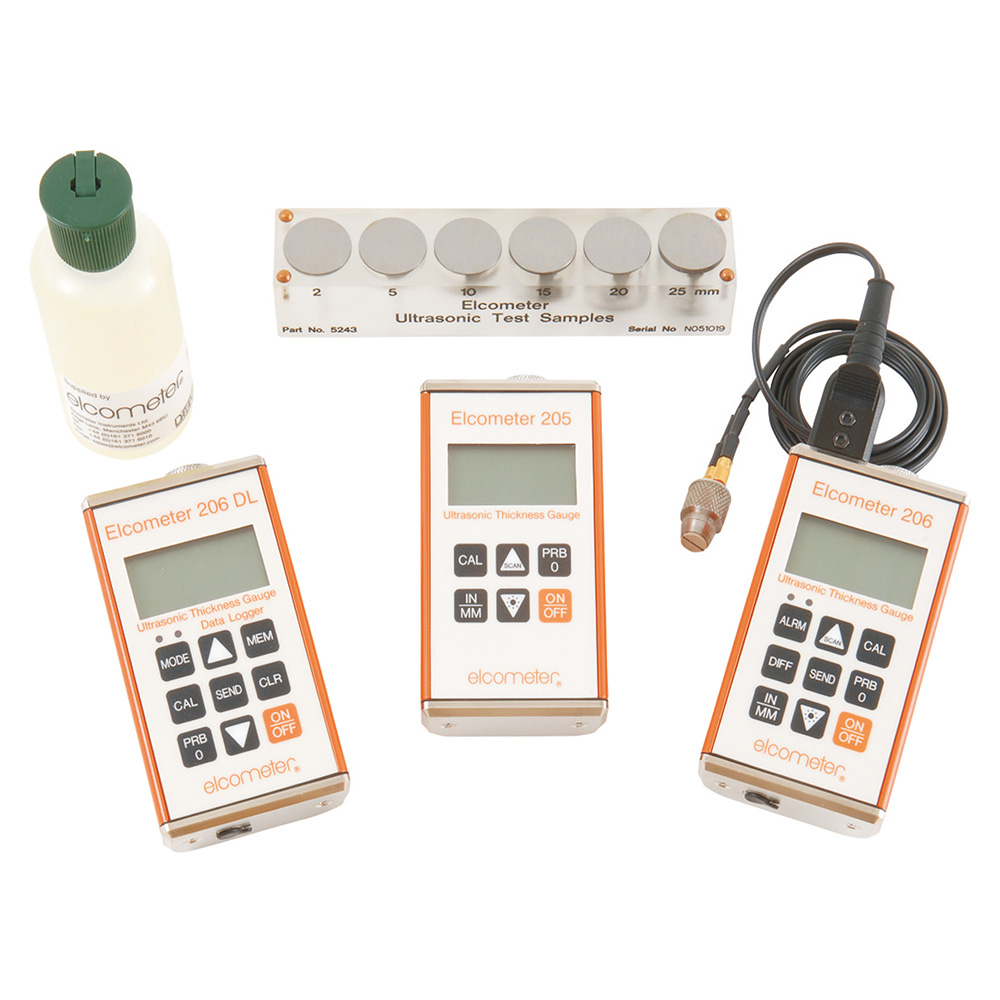

A range of 3 robust, hand held gauges allows you to make reliable measurements or scan a length of material for defects or the thinnest point using the scan mode.
Each gauge comes with 3 calibration options: single point, 2 point and speed of sound selection - allowing accurate measurements on a wide range of materials. Compatible with a wide range of measurement transducers, these ultrasonic thickness gauges are available with or without memory and all come with a backlight for measuring in darkened environments.
Measurement Modes:
- Scan Mode: Measuring up to 16 readings per second, the gauge captures the minimum recorded thickness.
- Alarm Mode: Once a minimum acceptable thickness has been set, a red LED illuminates and a buzzer sounds if a measurement falls below the preset value.
- Differential Mode: Set an acceptable thickness (nominal) value in the gauge and the unit will display the positive or negative (±) difference from the nominal value entered.
Elcometer 206DL only
Technical Specification:
Part Number
|
C205----1
|
C206----1
|
C206DL----1
|
| Model |
Elcometer 205 |
Elcometer 206 |
Elcometer 206DL |
| Scan Mode |
• |
• |
• |
| Differential Mode |
|
• |
• |
| Alarm Mode |
|
• |
• |
| Data Output (Immediate) |
|
• |
• |
| Data Logging |
|
|
1000 readings |
| ElcoMaster™ software |
|
|
• |
Maximum Measurement
Range |
0.63 - 500mm (0.025 - 20”), dependent on transducer and material |
| Velocity Range |
1250 - 10000m/s (0.0492 - 0.3930 in/µs) |
| Accuracy |
±0.1mm (0.004”), dependent on material and conditions |
| Resolution |
0.01mm (0.001”) |
| Units |
Millimeters and inches |
Operating
Temperature |
-30°C to 50°C (-20°F to 120°F) |
| Keypad Type |
Sealed Membrane |
| Display |
114mm (4½") Digit Liquid Crystal Display with backlight |
| Transducer |
Select from transducer options
|
| Battery Type |
AA 1.5V Alkaline or 1.2V NiCad cell |
| Battery Life |
200 hours Alkaline/120 hours NiCad |
| Weight |
295g (10oz) |
| Dimensions |
63 x 120 x 31mm (2.5 x 4.75 x 1.25”) |
| Certificate available |
Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.
Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory. |
| Packing List |
Elcometer 205, 206 or 206DL gauge, bottle of couplant, 2 x batteries, carry case,
operating instructions. Elcometer 206DL only: CD with ElcoMaster™ software and
data transfer cable |
Can be used in accordance with:
ASTM E 797, EN 15317
Accessories:
:
| T92015701 |
Ultrasonic Couplant 120ml (4fl oz) Bottle |
| T92015874 |
High Temperature Ultrasonic Couplant 60ml (2fl oz) Bottle |
| T9205243- |
Test Wedge: 2 - 25mm in 6 steps |
| T9205270- |
Test Wedge: 30 - 100mm in 8 steps |
|
